Home Lifting and Handling Machinery Applications Lifting and Handling Machinery
Lifting and Handling Machinery

Aerial Work Platform

Mobile Crane

Crawler Crane

Telescopic Handler

Loader

Skid Steer Loader

Forklift

Flatbed transport vehicle

Open All | Close All

System Solution


FunctionModelDocs
Walking SystemWalking PumpV40DV40E60/100V40D , V40E
Walking MotorHM3V , HM5V

HM3V , HM5V

Working SystemWorking PumpHP6V28/47HP6V
Working ValveHVSP12EHV06,EHG04HVSP , EHV , EHG
Platform ValveEHV06EHG04EHV , EHG
Rotary MotorHSD , HRDHSD , HRD
Electrical SystemControl ComponentsHL-C , HLEC-C1
CylinderHydraulic CylinderComplete set of hydraulic cylinders



FunctionModelDocs
Walking SystemWalking PumpV40DV40E60/100V40D , V40E
Walking MotorHM3V , HM5V

HM3V , HM5V

Working SystemWorking PumpHP6V28/47HP6V
Working ValveHVSP12,EHV06EHG04HVSP , EHV , EHG
Platform ValveEHV06EHG04EHV , EHG
Electrical SystemControl ComponentsHL-C , HLEC-C1
CylinderHydraulic CylinderComplete set of hydraulic cylinders



FunctionModelDocs
Walking SystemWalking PumpHCWHCW
Brake SystemHBKHBK
Working SystemManual PumpSB4-L1X28SB4-L1X/28
CylinderHydraulic CylinderComplete set of hydraulic cylinders



FunctionModelDocs
Walking SystemWalking PumpV40DV40D
Walking MotorHM3VHM3V
Walking ValveFBRCSeries

CylinderHydraulic CylinderComplete set of hydraulic cylinders

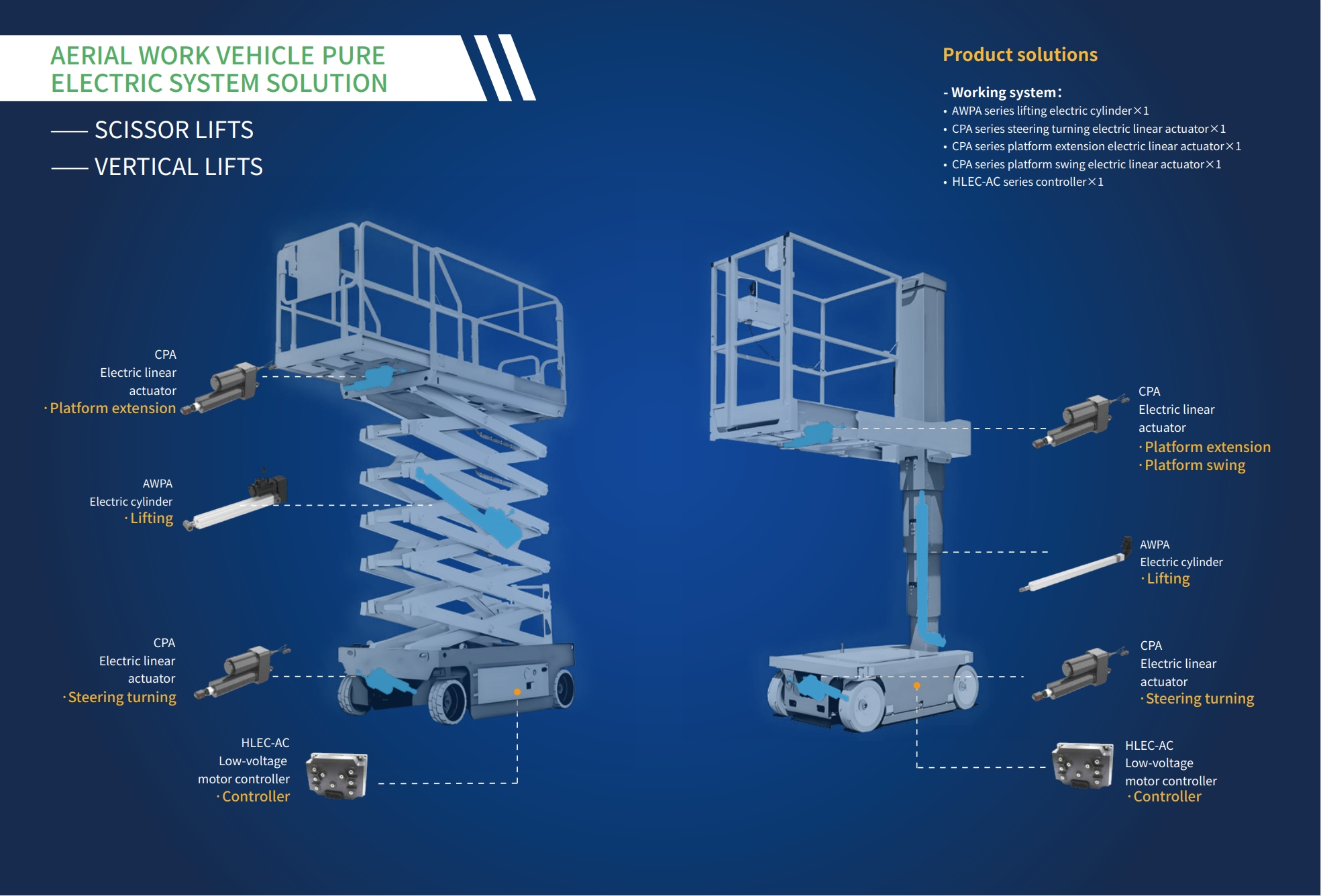

高空作業(yè)車(chē)5

FunctionModelDocs
Working SystemLift electric cylinderAWPA
Wheel steeringCPA
Platform ExtensionCPA
Platform swingCPA
ControllerHLEC-AC




Product Advantage

- Piston Pump:

Small-tonnage machine could use HP5V medium-pressure pump to improve operation efficiency through main engine matching. At the same time, using spherical flow distribution technology, which is suitable for high-pressure and high-speed working conditions;
V90N.DT and V30G high-pressure pumps can be selected for medium and large tonnages machine, and with the heavy-duty design can well ensure the crane's requirements for safe and reliable hoisting applications;

- Piston Motor:

11 piston design allows the motor to achieve better performance at low speeds: optimized rotation balance design, high-speed performance and smooth start characteristics.

- Hydraulic Cylinder:

It can be customized according to customer requirements to meet the application requirements of ordinary and special working conditions.
