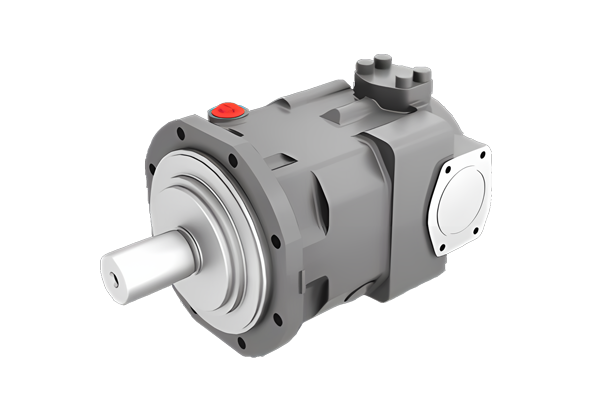

Type F30D Fixed displacement axial piston pump

Series of pictures

The axial piston fixed displacement pumps of the type F30 of D offer extremely high function safety. Its remarkably low noise levels, the high pressure rating, optimined power-to-weight-ratio make it possible to employ it for most industrial.

Specification: 520 cc/rev

Rated pressure: 420 bar

Peak pressure: 450 bar

Configure model/order number

***********

Copy to clipboard

Configured parameter：******

Add to cart Download Documents Get 3D/2D drawings

Open All | Close All

Serial Advantage

?Low-noise emissions

?Full torque available at the second pump in tandem pump applications

Technical Specification

	Displacement (cm3/rev.)	Rated pressure (bar)	Minimum oil suction pressure (bar）	Shell pressure (bar)	Self suction speed (rpm )	Minimum speed (rpm)	Temperature range (℃ )	Weight (kg)
F30D - 520	520	420	0.85	1 \| instantaneous 2	1500	500	-25~100	252

Application Industry

Be mainly used in
